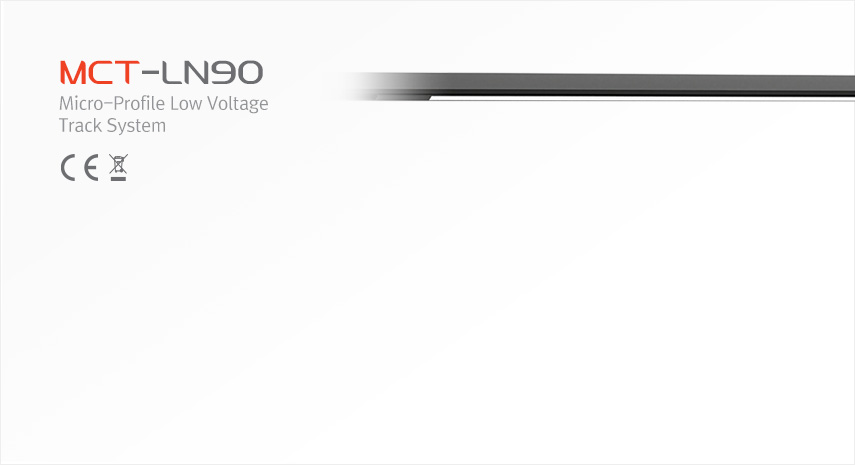

MCT-LN90
- - Ultra slim Spot, Linear fixtures with power track
- - Safe with constant voltage DC 24V
- - Miniature design
- - Rotatable head
- - Various beam angles
- - Dimmable
| Model Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|
| MCT LN90 (color)K-24V | 9.4 W | 295 lm | 31.4 lm/W | 118 |
- • Voltage : DC 24V
- • Operating Temperature : 0-45C(32-113F)
- • Lamp Life : 50,000 hrs / 70%
- • Finishes : Black
- • Color Rendering : CRI > 90

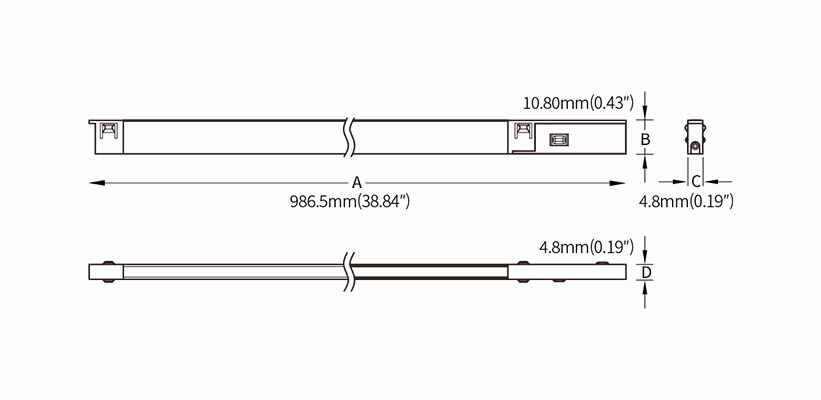

| Model Name | Power Input (V) | Lamp Power (W) | Luminous Flux (lm) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|---|
| MCT LN90 (color)K-24V | DC 24V | 9.4 W | 295 lm | 986.5 | 10.8 | 4.8 | 4.8 |
|
Power Connector | MCTPC-BK (1,500mm) MCTPC-WT (1,500mm) |
||||||
|---|---|---|---|---|---|---|---|---|
|
Flexible Connector | MCTPTC-BK (178mm) MCTPTC-WT (178mm) |
||||||
|
Suspension Bracket | MCT-SK-BRACKET-BK | ||||||
|
Suspension Power Kit | MCT-SK-POWER-BK | ||||||
|
Joint Bracket for TRS, TRT, TRH | MCT-JOINT-BK | ||||||
|
Corner In Connector Track | MCT-TRS-CI | ||||||
|
Corner Out Connector Track | MCT-TRS-CO-BK | ||||||
|
Corner In Connector Track | MCT-TRS-90-BL | ||||||
|
Corner In Connector Track | MCT-TRT-CI | ||||||
|
Corner Out Connector Track | MCT-TRT-CO-BK | ||||||
|
Corner In Connector Track | MCT-TRT-90-BL | ||||||
 |
12Port Hub | D12P-HUB Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers |
||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W) |
with 12way disributor | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 |
Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Dimming Interface (CASAMBI, Bluetooth) | FDD-L2B(Max, 200W) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control | ||||||
 |
Control Interface : FDD-L20 | Max. 200W (100W/CH, 1CH) Video Manual | ||||||
 |
Door and motion detection sensor : FLS-M24V | Voltage : DC 24V Video Manual | ||||||
 |
Human-body detection sensor : FLS-P24V | Voltage : DC 24V Video Manual |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
