FLX Stix NDPro

Feelian

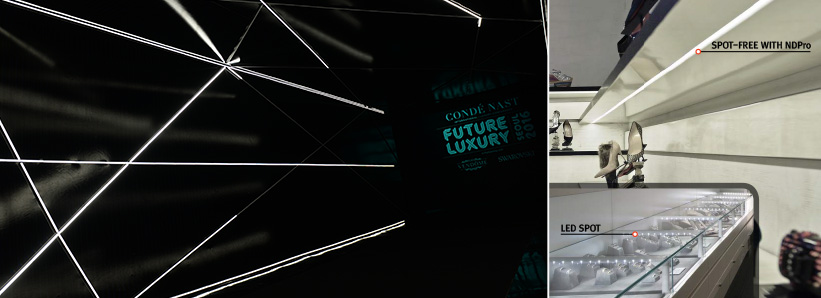

  • - Seamless Spot Free Illumination
  • - Ultra Slim Profile
  • - Close Pitch LEDs
  • - Perfected Color Consistency
  • - Even Surface Illumination
  • - Multiple Lengths for Easy Configuration
  • - End to End Snap-In Connection
  • - Dimmable
  • - Side-Feed Units for Long Continuous Runs
Max. connection
Model Name Max. units for LED Driver
24V/30W 24V/75W 24V/200W
NDP1 40K-24V-C90-L38 60 150 400
NDP1 40K-24V-C90 25 62 160
NDP3 40K-24V-C90 10 25 66
NDP4 40K-24V-C90 7 18 50
NDP7 40K-24V-C90 4 10 28
NDP11 40K-24V-C90 2 6 18
NDP15 40K-24V-C90 2 5 13
Max. connection (Single Run / 90% Driver Load)
Model Name Max. units for LED Driver
24V/30W (Max 27W) 24V/75W (Max 55W Run) 24V/200W (Max 55W Run)
NDP1-(Color)K-24V-C90-L38 55 112 112
NDP1-(Color)K-24V-C90 22 45 45
NDP3-(Color)K-24V-C90 11 23 23
NDP4-(Color)K-24V-C90 7 15 15
NDP7-(Color)K-24V-C90 3 7 7
NDP11-(Color)K-24V-C90 2 5 5
NDP15-(Color)K-24V-C90 1 3 3
  • - Power Input : 24V DC Constant Voltage
  • - Color Rendering : CRI/Ra > 90
  • - Available Color : 2700K, 3000K, 3500K, 4000K
  • - Operating Temperature : 0 - 45
  • - Lamp Life : 50,000 hrs L70
԰
Product Dimensions
Model Name Power Input Lamp Power A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
NDP1-(Color)K-24V-C90-L38 DC24 0.49 33 38 55 12.7 11.2 10.6 10
NDP1-(Color)K-24V-C90 DC24 1.2 95 100 117 12.7 11.2 10.6 10
NDP3-(Color)K-24V-C90 DC24 2.37 188 193 210 12.7 11.2 10.6 10
NDP4-(Color)K-24V-C90 DC24 3.59 279 284 301 12.7 11.2 10.6 10
NDP7-(Color)K-24V-C90 DC24 7.17 560 565 582 12.7 11.2 10.6 10
NDP11-(Color)K-24V-C90 DC24 10.62 838 843 860 12.7 11.2 10.6 10
NDP15-(Color)K-24V-C90 DC24 14.42 1,117 1,122 1,139 12.7 11.2 10.6 10
԰  ԰  ԰  ԰
Aceessories
Connecting cables(between FLX Stix NDPro & FLX Stix NDPro Connecting cables
(between fixtures)
Max. connection
NDPPTC NDPPTC1 NDPPTC2 NDPPTC4 NDPPTC6
150mm (6inch) 300mm (1feet) 600mm (2feet) 1200mm (4feet) 1800mm (6feet)

*Available Color : Black, Gray
Power cable : NDPPC Power cable (Between FLX Stix NDP &12-way distributor)
*Available Color : Black, Gray
Ŀ̺ LED Power cable :
NDP1 40K-24V-C90-L38P		 Fixture (36mm)
Power cable (2,500mm)
Ŭ Mounting bracket :
NDP-BRACKET1		 NDP-BRACKET1(A) : 1set = 2pcs
NDP-BRACKET1(B) : 1set = 3pcs
Ŭ Angle bracket (15 & 40) : NDP-BRACKET2 NDP-BRACKET2(A) : 1set = 2pcs
NDP-BRACKET2(B) : 1set = 3pcs
Connecting Bracket Connecting Bracket :
NDP-BRACKET3		 Included in fixture
Power Bracket Power Bracket :
NDP-BRACKET4		 Included in NDPPC and NDPPTC
Magnet Brackets Magnet Brackets NDP-BRACKET-M
NDP Recessed Extrusion NDP Recessed Extrusion NDP-EXR-SV (1,200mm)
NDP-EXR-BK (1,200mm)
鿬 Sidefeed for seamless extension (3W) : NDP3 40K-24V-S The dimension is the same as NDP3 40K-24V
Powered only through cable, no power supply on the input connector
Flexible Flexible Connector NDP1 40K-24V-C90-FLEX
Corner In Connector Corner In Connector NDP1 40K-24V-C90-CI
Corner Out Connector Corner Out Connector NDP1 40K-24V-C90-CO
End cap End cap : NDP-CAP Included in fixture
LED Converter LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
End-CAP LED Driver : FLC200-24V/T (200W 24V) LED Driver With 12way distributor Spec
Dimming Dimming Interface (1-10V) : FDC-L10 Max. 100W (100W/CH, 1CH) Video Manual
Dimming Dimming Interface(0-10/1-10V, DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Manual
Dimming Interface (Dali) : FDD-L1DA Dimming Interface (Dail) :
FDD-L1DA		 Max. 200W (100W/CH, 1CH)
12Port Hub 12Port Hub D12P-HUB
Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers
Occupancy Sensor : NDP-OSM Occupancy Sensor : NDP-OSM NDP Occupancy Sensor Inline Module
Inline Inline dimmer : NDPDIM Max 55W in a row
Touch Switch Touch Switch : NDPTS NDP ON/OFF touch switch
۰ Door and motion detection sensor : FLS-M24V Voltage : DC 24V Video Manual
ü Human-body detection sensor : FLS-P24V Voltage : DC 24V Video Manual
FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual

FDC-L10 (0-10V/1-10V to PWM translator)

• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V

• Wiring

ǰἱ
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)

ġ

W/ Bracket

 A(mm)B(mm)C(mm)D(mm)E(mm)F(mm)
Flat type121113.114.31614.6

Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files

 FLX Stix NDPro  Specification Sheets  IES data
