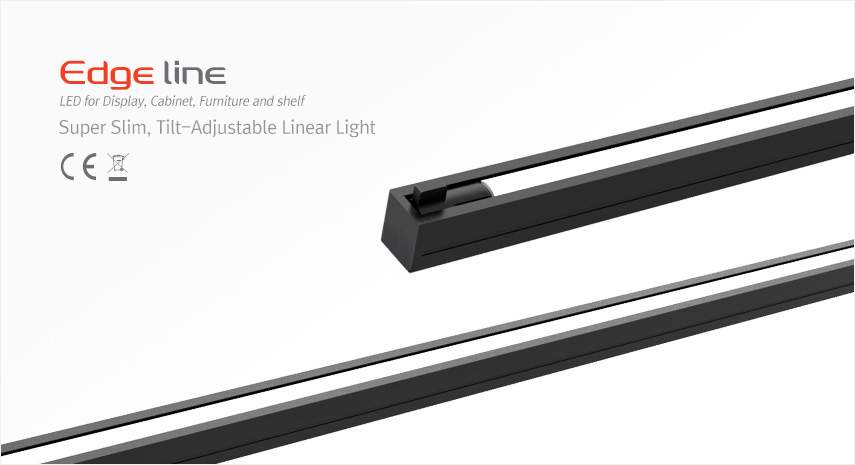

Edgeline

Feelian
  • - Light module tiltable 30 (left/right)
  • - Super slim design
  • - Various length available

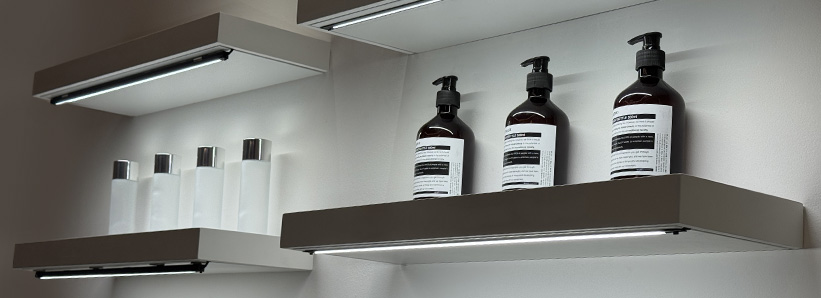

  • - Miniature lighting for furniture, showcase, museum

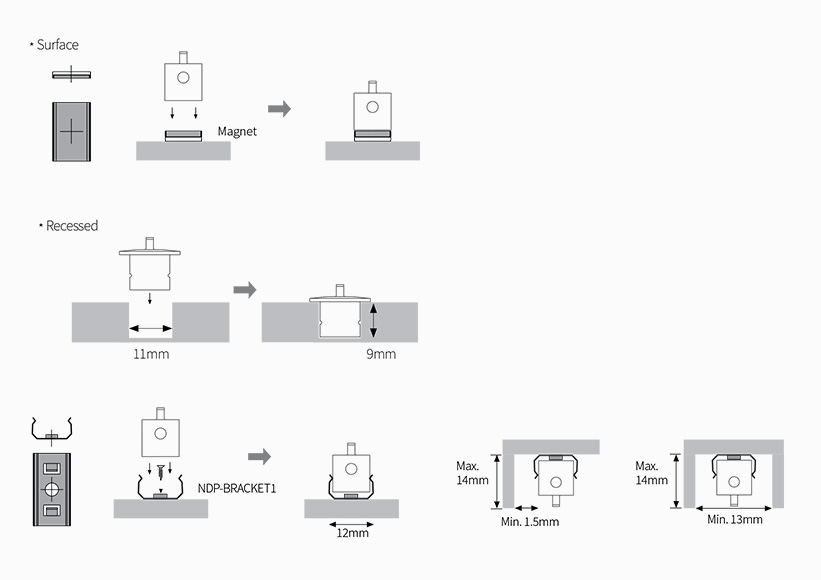

  • - Surface, Recessed type available
  • - Lens, Diffuser type available
  • - Dimmable
Product Specification
Type Model number Voltage Input (V) Power Input (W) Luminous Flux (lm) Luminous Efficacy (lm/W) Beam angle Color Rendering
Lens type Surface EGL4-30K-24V-52-C90-SL DC 24V 3.98 W 288.6 lm 72.4 lm/W 52 Ra>90
EGL9 30K-24V-52-C90-SL 8.67 W 642.6 lm 74.1 lm/W
EGL14 30K-24V-52-C90-SL 13.43 W 964.8 lm 72 lm/W
EGL19 30K-24V-52-C90-SL 18.90 W 1403.5 lm 74.2 lm/W
Recessed EGL4-30K-24V-52-C90-RL 3.98 W 288.6 lm 72.4 lm/W
EGL9 30K-24V-52-C90-RL 8.67 W 642.6 lm 74.1 lm/W
EGL14 30K-24V-52-C90-RL 13.43 W 964.8 lm 72 lm/W
EGL19 30K-24V-52-C90-RL 18.90 W 1403.5 lm 74.2 lm/W
Diffuser type Surface EGL4 30K-24V-C90-SM DC 24V 3.99 W 187.6 lm 46.9 lm/W 112
EGL9 30K-24V-C90-SM 8.68 W 436.5 lm 50.37 lm/W
EGL14 30K-24V-C90-SM 13.43 W 676.4 lm 50.37 lm/W
EGL19 30K-24V-C90-SM 18.69 W 946.3 lm 50.62 lm/W
Recessed EGL4 30K-24V-C90-RM 3.99 W 187.6 lm 46.9 lm/W
EGL9 30K-24V-C90-RM 8.68 W 436.5 lm 50.37 lm/W
EGL14 30K-24V-C90-RM 13.43 W 676.4 lm 50.37 lm/W
EGL19 30K-24V-C90-RM 18.69 W 946.3 lm 50.62 lm/W
  • • Voltage : DC 24V
  • • Color Rendering : Ra > 90 (CRI)
  • • Beam Angle : 52 (Lens type) / 112 (Diffuser type)
  • • Operating Temperature : 0-45C (32-113F)
  • • Lamp Life : 50,000 hrs / 70%
  • • Finishes : Black
԰

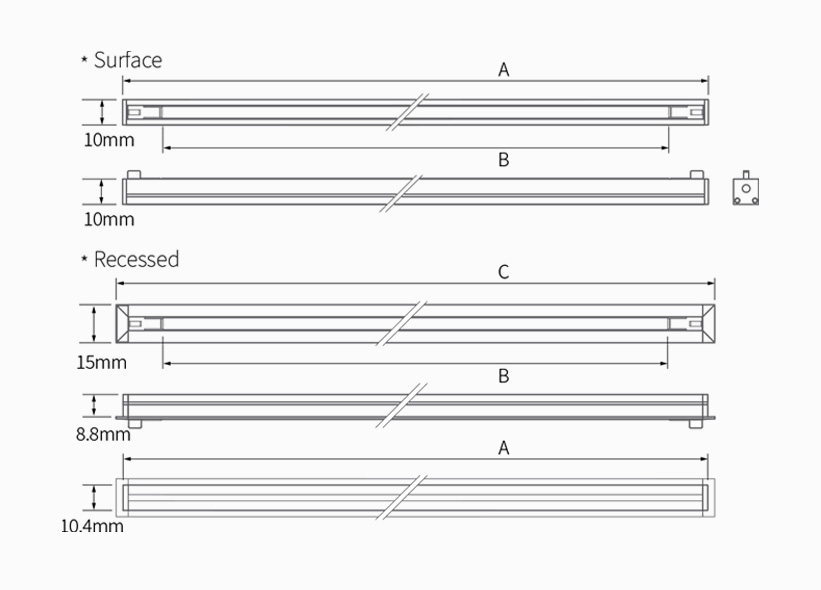

Type Model number A (mm) B (mm) C (mm)
Lens type Surface EGL4-30K-24V-52-C90-SL 258 mm 227 mm -
EGL9 30K-24V-52-C90-SL 558 mm 527 mm -
EGL14 30K-24V-52-C90-SL 858 mm 827 mm -
EGL19 30K-24V-52-C90-SL 1158 mm 1127 mm -
Recessed EGL4-30K-24V-52-C90-RL 258 mm 227 mm 264.5 mm
EGL9 30K-24V-52-C90-RL 558 mm 527 mm 564.5 mm
EGL14 30K-24V-52-C90-RL 858 mm 827 mm 864.5 mm
EGL19 30K-24V-52-C90-RL 1158 mm 1127 mm 1164.5 mm
Diffuser type Surface EGL4 30K-24V-C90-SM 258 mm 227 mm -
EGL9 30K-24V-C90-SM 558 mm 527 mm -
EGL14 30K-24V-C90-SM 858 mm 827 mm -
EGL19 30K-24V-C90-SM 1158 mm 1127 mm -
Recessed EGL4 30K-24V-C90-RM 258 mm 227 mm 264.5 mm
EGL9 30K-24V-C90-RM 558 mm 527 mm 564.5 mm
EGL14 30K-24V-C90-RM 858 mm 827 mm 864.5 mm
EGL19 30K-24V-C90-RM 1158 mm 1127 mm 1164.5 mm
Accessories
12Port Hub 12Port Hub D12P-HUB
Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers
LED Driver with 12way distributor, with power cord (1,800mm) LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
FLC200-24V/T (200W) LED Driver :
FLC200-24V/T (200W)		 with 12way disributor
Dimming Interface (1-10V) : FDC-L10 Dimming Interface (1-10V) :
FDC-L10		 Max. 100W (100W/CH, 1CH)
Dimming Interface (0-10/1-10,DMX512) Dimming Interface (0-10/1-10,DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Dimming Interface (Dail) : FDD-L1DA Dimming Interface (Dail) :
FDD-L1DA		 Max. 200W (100W/CH, 1CH)
Dimming Interface (Zigbee) Dimming Interface (Zigbee) FDD-L2Z : Max. 200W (100W/CH, 2CH)
Dimming Interface (CASAMBI, Bluetooth) Dimming Interface (CASAMBI, Bluetooth) FDD-L2B(Max, 200W)
Switch (Zigbee) Switch (Zigbee) FSM-Z1 : Wireless Control
LED Converter Control Interface : FDD-L20 Max. 200W (100W/CH, 1CH) Video Manual
۰ Door and motion detection sensor : FLS-M24V Voltage : DC 24V Video Manual
ü Human-body detection sensor : FLS-P24V Voltage : DC 24V Video Manual





FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V

• Wiring

ǰἱ
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)

ġ
