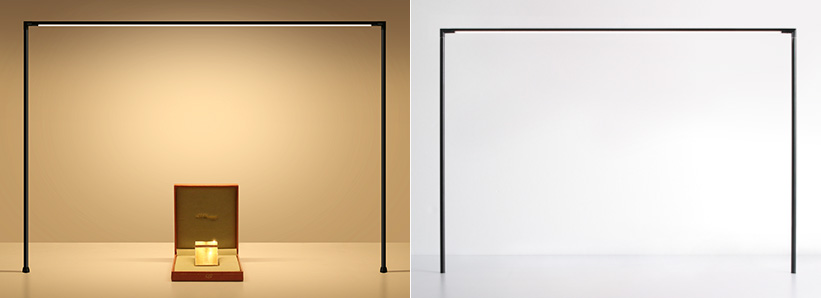

FLX Micro Showcase Arm
- - Aluminum body with rotating top bar
- - Super slim design(8mm)
- - Various length available
- - Miniature lighting for furniture, showcase, museum
- - Dimmable
- - Rotating top bar up to 360
- - Customized Pole height available (up to 400mm)
| Type | Model number | Power Input | Luminous Flux | Luminous Efficacy | Beam angle |
|---|---|---|---|---|---|
| Lens type | MCR SA4 30K-24V-52-C90 | 3.98 W | 288.6 lm | 72.4 lm/W | 52 |
| MCR SA9 30K-24V-52-C90 | 8.67 W | 642.6 lm | 74.1 lm/W | ||
| MCR SA14 30K-24V-52-C90 | 13.43 W | 964.8 lm | 72 lm/W | ||
| Diffuser type | MCR SA4 30K-24V-C90 | 3.99 W | 187.6 lm | 46.9 lm/W | 112 |
| MCR SA9 30K-24V-C90 | 8.68 W | 436.5 lm | 50.37 lm/W | ||
| MCR SA14 30K-24V-C90 | 13.43 W | 676.4 lm | 50.37 lm/W |
- - Power Input : DC 24V
- - Color Rendering : CRI > 90
- - Color Temperature : 2700K, 3000K, 3500K, 4000K
- - Beam angle : 52 (Lens) / 112 (Diffuser)
- - Operating temperature : 0 ~ 45C
- - Finish : Black
- - Material : Aluminum

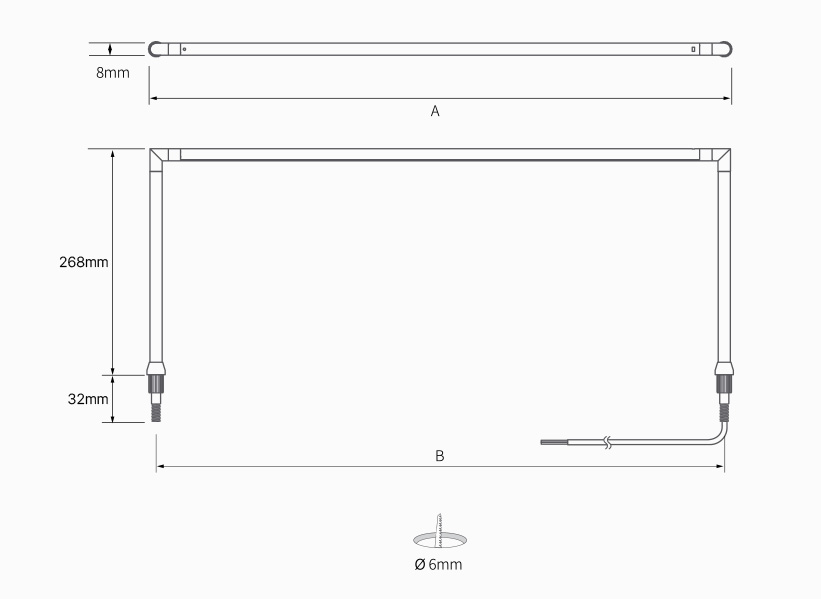

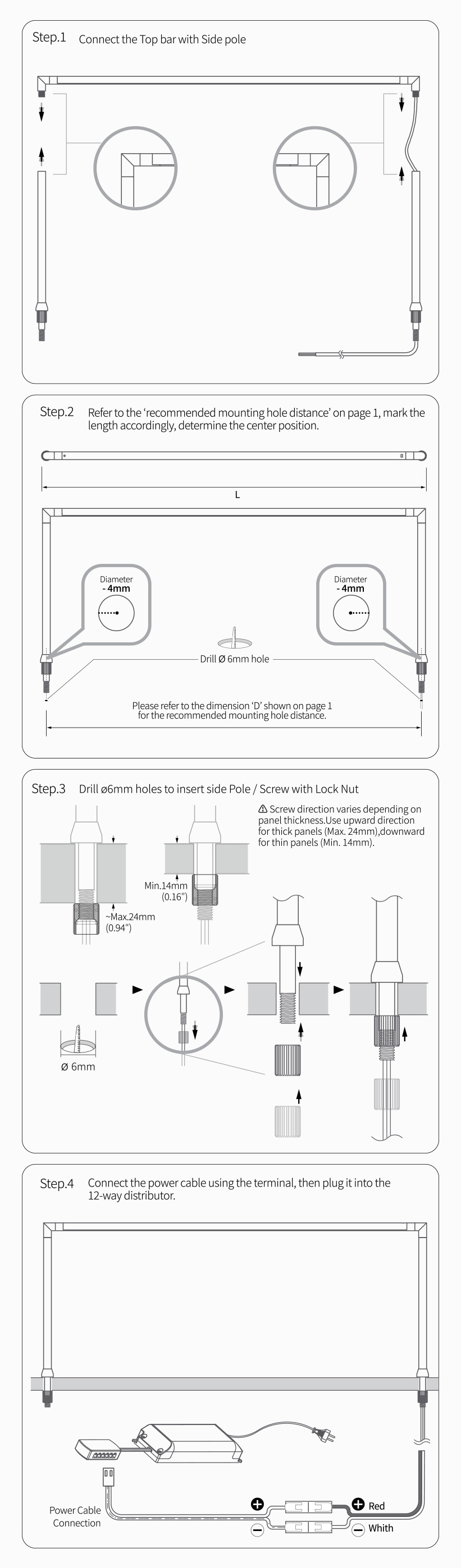

| Model Name | A(mm) | B(mm) Recommended Distance for Mounting Holes |
|---|---|---|
| MCR SA4 30K-24V-C90 | 280 mm | 272 mm |
| MCR SA9 30K-24V-C90 | 580 mm | 572 mm |
| MCR SA14 30K-24V-C90 | 880 mm | 872 mm |
|
MCR Showcase arm L connect type (Standard) |
Lens type MCR SA4 30K-24V-52-C90-L / MCR SA9 30K-24V-52-C90-L / MCR SA14 30K-24V-52-C90-L Diffuser type MCR SA4 30K-24V-C90-L / MCR SA9 30K-24V-C90-L / MCR SA14 30K-24V-C90-L | ||||||
|---|---|---|---|---|---|---|---|---|
|
MCR Showcase arm Y connect type (Corner) |
Lens type MCR SA4 30K-24V-52-C90-Y / MCR SA9 30K-24V-52-C90-Y / MCR SA14 30K-24V-52-C90-Y Diffuser type MCR SA4 30K-24V-C90-Y / MCR SA9 30K-24V-C90-Y / MCR SA14 30K-24V-C90-Y |
||||||
|
MCR Showcase arm T connect type (Extension) |
Lens type MCR SA4 30K-24V-52-C90-T / MCR SA9 30K-24V-52-C90-T / MCR SA14 30K-24V-52-C90-T Diffuser type MCR SA4 30K-24V-C90-T / MCR SA9 30K-24V-C90-T / MCR SA14 30K-24V-C90-T |
||||||
 |
12Port Hub | D12P-HUB Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers |
||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W) |
with 12way disributor | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 |
Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Dimming Interface (CASAMBI, Bluetooth) | FDD-L2B(Max, 200W) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control | ||||||
 |
Control Interface : FDD-L20 | Max. 200W (100W/CH, 1CH) Video Manual |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
