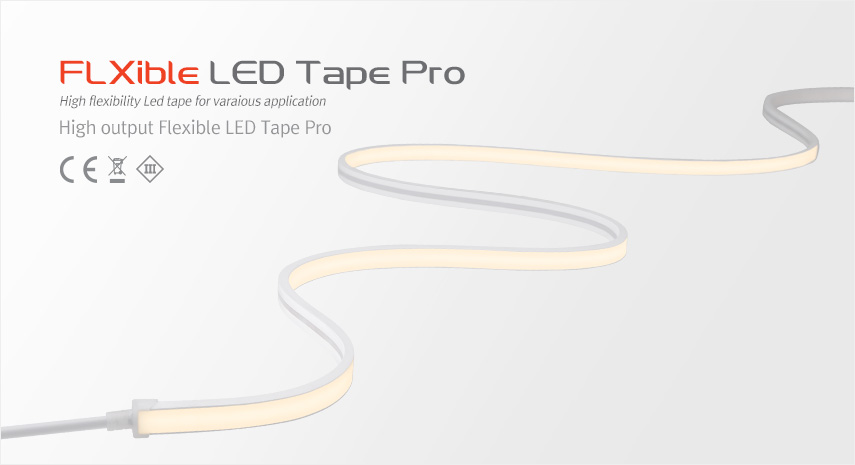

FLXible LED Tape Pro
- - Seamless Dot-Free Illumination
- - Ultra Slim
- - High Efficiency / High Output (110lm/W)
- - High CRI (CRI 90)
- - Bend Direction Vertically
- - Indoor/Outdoor Application (IP65)
- - Field Cuttable (33.3mm)
- - Available in Standard Lengths of 5M reels
- - Dimmable
- - 15W per meter
| Model Name | Color | Lamp Power | Luminous Flux (lm) | Lumen/W |
|---|---|---|---|---|
| FTP15 27K-24V-C90 | 2700K | 13.85W/m | 1,361lm | 98.24/W |
| FTP15 30K-24V-C90 | 3000K | 14.01W/m | 1,443lm | 103.02/W |
| FTP15 35K-24V-C90 | 3500K | 13.95W/m | 1,527lm | 109.44/W |
| FTP15 40K-24V-C90 | 4000K | 14.36W/m | 1,561lm | 108.7/W |
- - IP Rate : IP65 with Factory Termination
- - Lamp Power : 15W/m
- - Power Input : 24V DC
- - Color Rendering : Ra>90
- - Operating Temperature Ranges : 0~45 (32F ~ 113F)
- - Beam Angle : 110
- - Material : Silicon
- - Available Color : 2700K, 3000K, 3500K, 4000K
 |
Flexible LED Tape Pro | FTP15 40K-24V-C90(5M): 72W | ||||||
|---|---|---|---|---|---|---|---|---|
 |
Power Cable | FTP-INPC (2,500mm) with end cap | ||||||
 |
Direct connector | FTP-INCPL | ||||||
 |
Mounting brackets | FTP-BRACKET (1set = 4pcs) | ||||||
 |
FTP Extrusion line | FTP-EXL (1.2m) | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W DC24V) | LED Driver With 12way distributor | ||||||
 |
Dimming Interface (0-10V) | FDC-L10: Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) | ||||||
 |
Dimming Interface (Dali) | FDD-L1DA: Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
