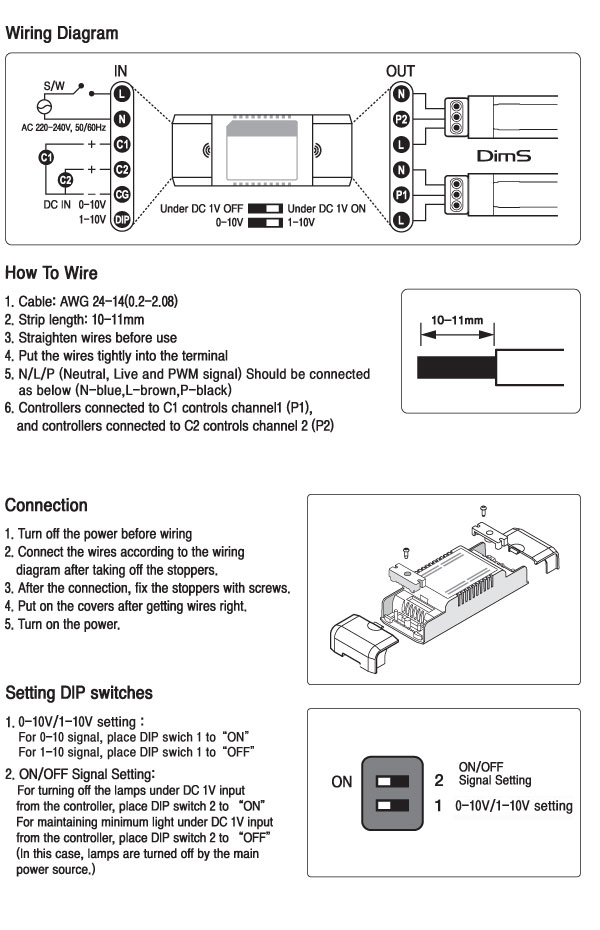

DA02V10SE (0-10V/1-10V to PWM translator)

• 2 Channels
• Current Limit : Max. 2A/Ch
• Input Signal : DC 0-10V/1-10V
• Rated Input : AC 220 - 240V, 50/60Hz
• Out Power : 220-240V, PWM output 2Ch
• Max 10 pcs of DimSlim/DimSlimline/Led dimming products per channel and up to 400W per channel
• Dimension : W139.8 X H58.4 X D33 (mm)

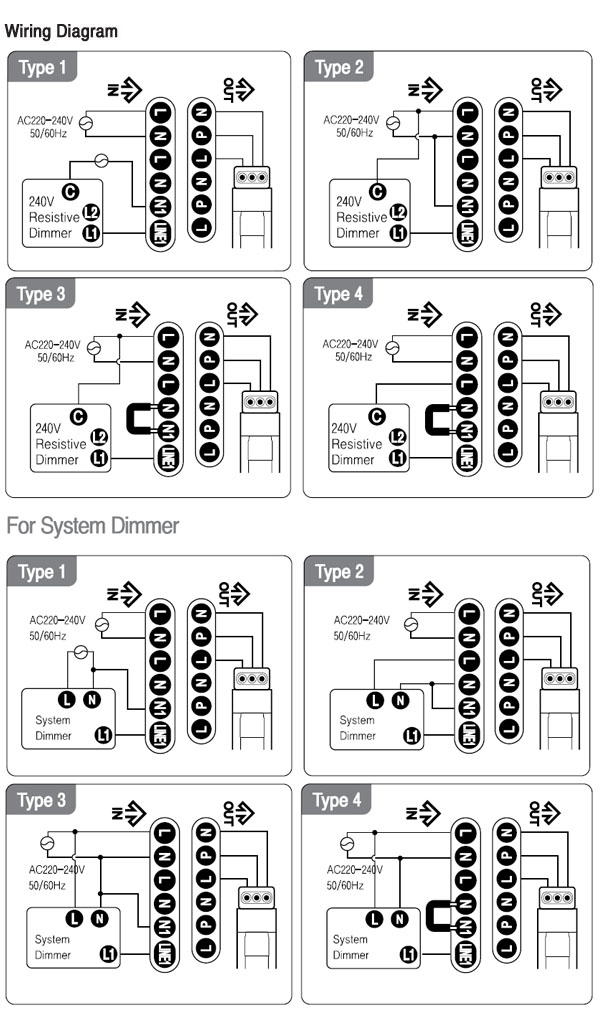

FDA-P1H (Phase to PWM translator)

Change incandescent lamp to Feelux dimmable T5 lamp! You don't need to change your pahse dimmers. You can use the existing installed ones by using FDA-P1H.

• 1 Channel, 2 output terminal blocks
• Rated Input : AC 220-240V, 50/60Hz
• Input Signal : Phase
• Output Load : Max 10pcs of DimSlim/DimSlimLine/Led dimming products per channel and up to 400W per channel
• Dimension : W220 X H50 X D35 (mm)

DTOPWM02 (DALI/DSI/DMX to PWM Translator)

• DTOPWM02 will interface DimSlim PWM with any other DALI/DSL/DMX
• manufactured control proprietary system.
• A single DTOPWM02 can handle a total of 3,500 lamp watts.
• 4 independent PWM output signals for DimSlim
• Maximum connecting load for individua output is 10amps/1750 lamp watts per circuit, or 50 fixtures per channel.

Availability

• Translates standard DALI 4 device protocol with DALI
• Translates standard DMX 512 protocol
• Translates DSI protocol
• Volt : AC 198 - 264V
• Frequency : 50/60Hz
• Current : 20amp-4m² terminals
• Mechanical fixing : DIN rail clip lock
• Dimenson : W209 X H86 X D66 (mm)

DA02DALI (DALI to PWM translator)

• 2channel
• Dimension : W139.8 X H58.4 X D33 (mm)
• Input Signal : DALI
• Rated Input : AC 100-240V, 50/60Hz
• Output Signal : PWM
• Output Load : Max 10pcs of DimSlim/DimSlimLine/Led dimming products per channel and up to 300W per channel

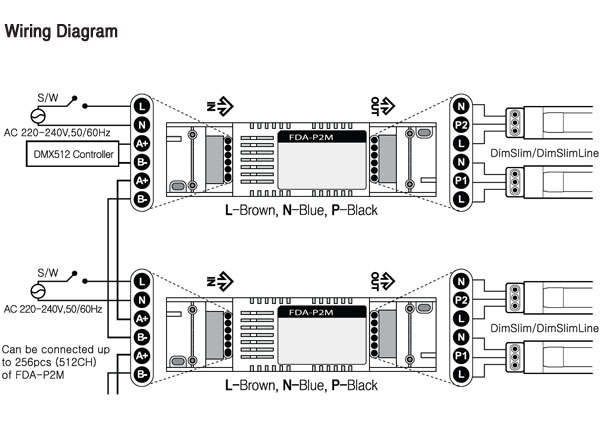

FDA-P2M (DMX512 to PWM translator)

• 2channel
• Dimension : W220 X H50 X D35 (mm)
• Input Signal : DMX 512
• Rated Input : AC 220-240V, 50/60Hz, 3A
• Output Signal : PWM
• Output Load : Max 10pcs of DimSlim/DimSlimLine/Led dimming products per channel and up to 300W per channel
