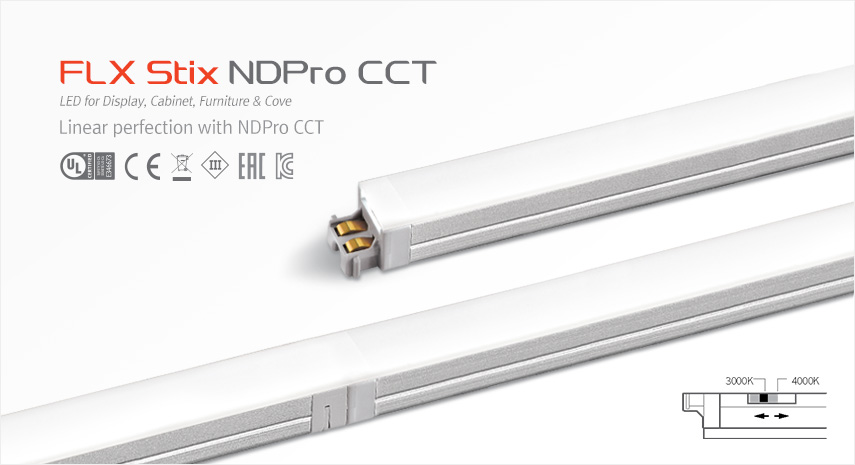

FLX Stix NDPro CCT

Feelian

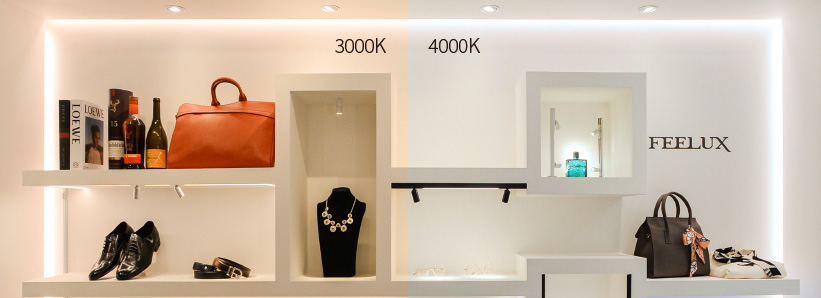

  • - Selectable two Color Temperature
  • - Seamless Spot Free Illumination
  • - Ultra Slim Profile
  • - Close Pitch LEDs
  • - Perfected Color Consistency
  • - Even Surface Illumination

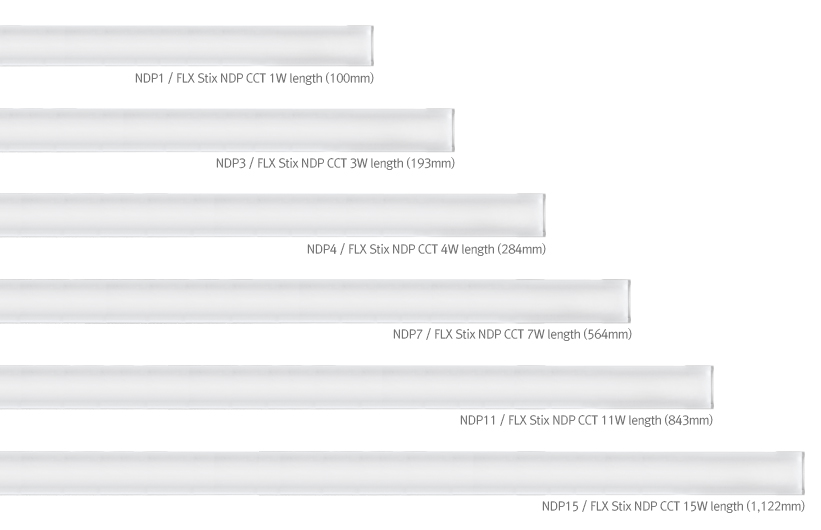

  • - Multiple Lengths for Easy Configuration
  • - End to End Snap-In Connection
  • - Dimmable
  • - High efficiency

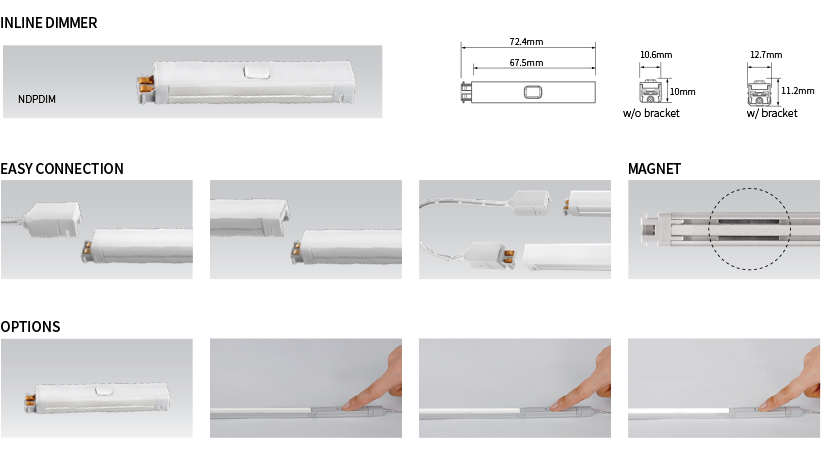

Various options

Max. connection 55W in one row(single power feed) / LED Driver

Product Specifications
Model Number Voltage Input (V) Power Input (W) Luminous Flux (lm) Color Rendering
3000K 4000K
NDP1 2SW-24V-C90 DC 24V 1.2 99.3 115.3 Ra > 90
NDP3 2SW-24V-C90 2.42 222.6 230.3
NDP4 2SW-24V-C90 3.62 319.7 326.4
NDP7 2SW-24V-C90 7.17 648.8 684.5
NDP11 2SW-24V-C90 10.62 856.8 987.6
NDP15 2SW-24V-C90 14.42 1,189.2 1,238.2
Product Specifications
Model Number Lamp Power Luminous Flux Voltage Input
3000K 4000K
NDP1 2SW-24V-C90 1.2W 99.3 lm 115.3 lm DC 24V
NDP3 2SW-24V-C90 2.42W 222.6 lm 230.3 lm
NDP4 2SW-24V-C90 3.62W 319.7 lm 326.4 lm
NDP7 2SW-24V-C90 7.17W 648.8 lm 684.5 lm
NDP11 2SW-24V-C90 10.62W 856.8 lm 987.6 lm
NDP15 2SW-24V-C90 14.42W 1,189.2 lm 1,238.2 lm
  • - Power Input : DC 24V
  • - Color Rendering : Ra > 90
  • - Available Color : 3,000K-4,000K(Standard)
  • - Operating Temperature : 0 ~ 45 (32 ~ 113F)
  • - Material : Aluminum
  • - Beam Angle : 120
  • - Lamp Life : 50,000hr / 70%
԰
Product Dimensions
Model Name Power Input (V) Lamp Power (W) A(mm) B(mm) C(mm)
NDP1 2SW-24V-C90 DC 24V 1.2 95 100 117
NDP3 2SW-24V-C90 DC 24V 2.42 188 193 210
NDP4 2SW-24V-C90 DC 24V 3.62 279 284 301
NDP7 2SW-24V-C90 DC 24V 7.17 560 565 582
NDP11 2SW-24V-C90 DC 24V 10.62 838 843 860
NDP15 2SW-24V-C90 DC 24V 14.42 1,117 1,122 1,139
԰
Max. connection
Model Name A(mm) B(mm) C(mm)
FLC30-24V/T 150 41 31
FLC75-24V/T 180 60 32
԰
Max. connection
Model Name A(mm) B(mm) C(mm)
FLC200-24V/T 228 68 39
԰
Aceessories
Connecting cables(between FLX Stix NDPro & FLX Stix NDPro Connecting cable
Max. connection
NDPPTC NDPPTC1 NDPPTC2 NDPPTC4 NDPPTC6
150mm (6inch) 300mm (1feet) 600mm (2feet) 1200mm (4feet) 1800mm (6feet)
Power cable NDPPC (2,500mm)
NDPPC (4,000mm)
NDPPC (6,000mm)
Ŭ Metal Mounting bracket :
NDV-BRACKET1		 Included with fixture
Ŭ Angle bracket :
NDV-BRACKET2 		Angled 15/40(BK2) Optional
Connecting Bracket Connecting Bracket :
NDV-BRACKET3		 Fixture to Fixture
Included with fixture
Power Bracket Power Bracket :
NDV-BRACKET4		 Included in NDPPC and NDPPTC
Magnet Brackets Magnet Brackets NDP-BRACKET-M
NDP Recessed Extrusion NDP Recessed Extrusion NDP-EXR-SV (1,200mm)
NDP-EXR-BK (1,200mm)
End cap End cap : NDP-CAP Included in fixture
LED Converter LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
End-CAP LED Driver : FLC200-24V/T (200W 24V) LED Driver With 12way distributor Spec
12Port Hub 12Port Hub D12P-HUB
Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers
Dimming Dimming Interface (1-10V) : FDC-L10 Max. 100W (100W/CH, 1CH) Video Manual
Dimming Dimming Interface(0-10/1-10V, DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Manual
Dimming Interface (Dali) : FDD-L1DA Dimming Interface (Dail) :
FDD-L1DA		 Max. 200W (100W/CH, 1CH)
Occupancy Sensor : NDP-OSM Occupancy Sensor : NDP-OSM NDP Occupancy Sensor Inline Module
Inline Inline dimmer : NDPDIM Max 55W in a row
Touch Switch Touch Switch : NDPTS NDP ON/OFF touch switch
Dimming Interface (CASAMBI, Bluetooth) Dimming Interface (CASAMBI, Bluetooth) FDD-L2B(Max, 200W)
Dimming Interface (Zigbee) Dimming Interface (Zigbee) FDD-L2Z : Max. 200W (100W/CH, 2CH)
Switch (Zigbee) Switch (Zigbee) FSM-Z1 : Wireless Control
LED Converter Control Interface : FDD-L20 Max. 200W (100W/CH, 1CH) Video Manual
FDD-L1DA More Details

FDD-L1DA

DALI



• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDC-L10 More Details

FDC-L10

0-10V/1-10V



• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDD-L20 More Details

FDD-L20

0-10V/1-10V



• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDA-L2MO More Details

FDA-L2MO

0-10V/1-10V / DMX512



• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDA-L5M More Details

FDA-L5M

DMX512



• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FSM-Z1 More Details

FSM-Z1

ZIGBEE



• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z More Details

FDD-L2Z

ZIGBEE



• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)

ġ

W/ Bracket

Fixture dimension
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
Flat type 12 11 13.1 14.3 16 14.6
