FLXible Neon Smooth
- - Seamless Dot-Free Illumination
- - Ultra Slim
- - High Efficiency / High Output (140lm/W)
- - High CRI (CRI 90)
- - Bend Direction Vertically
- - Indoor/Outdoor Application (IP67)

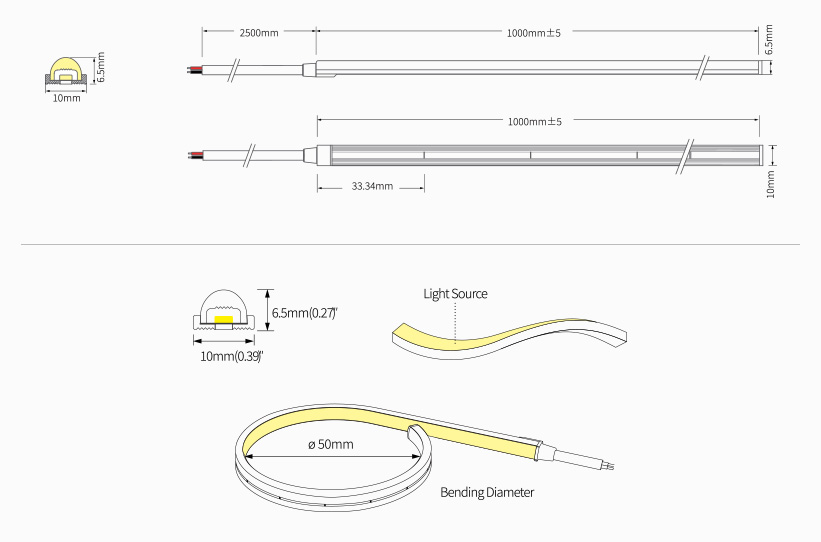

- - Field Cuttable (33.34mm)
- - Available in Standard Lengths of 5M reels
- - Dimmable
| Model Number | Color Temperature | Lamp Power | Luminous Flux | Lumen/W |
|---|---|---|---|---|
| FNS15 27K-24V-C90 | 2700K | 13.43 W/m | 1,812 lm/m | 133.35 lm/W |
| FNS15 30K-24V-C90 | 3000K | 13.53 W/m | 1,835 lm/m | 135.60 lm/W |
| FNS15 35K-24V-C90 | 3500K | 13.73 W/m | 1,936 lm/m | 140.93 lm/W |
| FNS15 40K-24V-C90 | 4000K | 13.73 W/m | 1,876 lm/m | 136.55 lm/W |
- - Power Input : DC 24V
- - Lamp Power : 15 W/m
- - IP Rate : IP67 with Factory Termination
- - Color Rendering : Ra > 90
- - Operating Temperature : 0-45
- - Beam Angle : 160
- - Material : Silicone
- - Available Color : 2700K, 3000K, 3500K, 4000K
 |
FN Smooth | FNS15-(color)K-24V-C90-5M FNS15-(color)K-24V-C90-4M FNS15-(color)K-24V-C90-3M FNS15-(color)K-24V-C90-2M FNS15-(color)K-24V-C90-1M |
||||||
|---|---|---|---|---|---|---|---|---|
 |

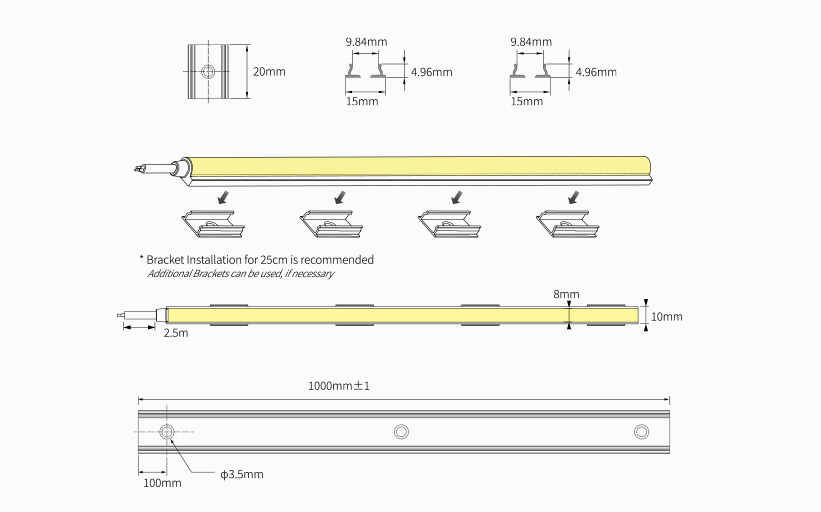

Mounting Brackets | FNS-Bracket(4pcs = 1set) | ||||||
 |
FNS Extrusion Line | FNS-EXL(1,000mm) | ||||||
 |
FNS Indoor Power cable | FNS-INPC | ||||||
 |
FNS Indoor Connecting cable | FNSPTC | ||||||
 |
FNS Indoor Connector | FNS-INCPL | ||||||
 |
FNS END CAP | FNS-ENDCAP | ||||||
 |
12 Port Hub | 12 Way distributor Included with Cord and Plug drivers. Order separately for 3rd Party Drivers |
||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver | FLC200-24V/T (200W) with 12way disributor Spec | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 | FDC-L10 (Max. 100W) Video Manual | ||||||
 |
Dimming Interface | FDA-L2MO (0-10V/1-10V, DMX512) Max. 200W (100W/CH, 2CH) FDA-L5M (DMX512) Max. 200W (50W/CH, 5CH) Manual |
||||||
 |
Dimming Interface (Dail) | FDD-L1DA Max. 200W (100W/CH, 1CH) |
