FLX Stix NDPro Corner
- - 45 Asymmetric profile for Corner
- - Seamless Spot Free Illumination
- - Close Pitch LEDs
- - Perfected Color Consistency

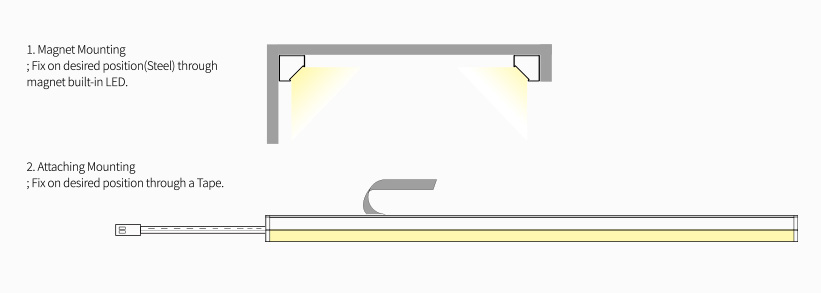

- - Easy mounting with Magnet plate
- - Ultra slim Profile(12mm)

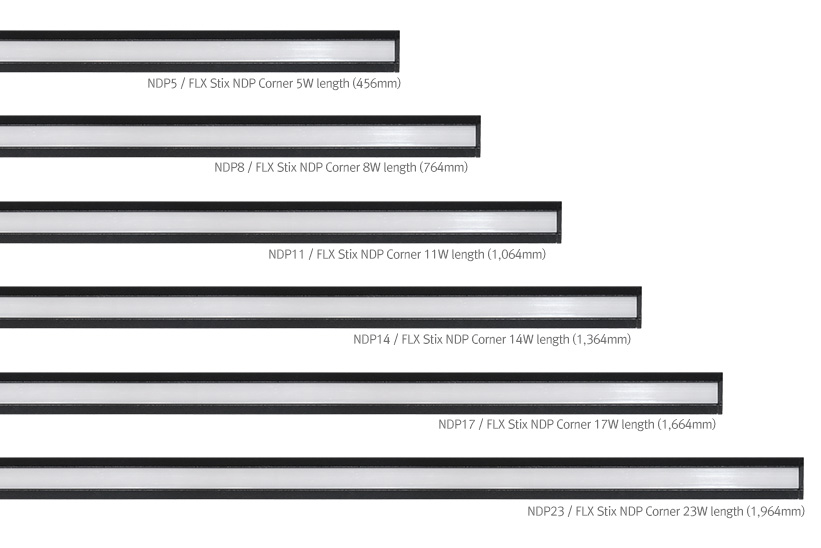

- - Multiple Lengths for Easy Configuration
- - Dimmable
| Model Name | Lamp Power | Luminous Flux |
|---|---|---|
| NDP5-30K-24V-C90-C | 4.65 W | 174.5 lm |
| NDP8-30K-24V-C90-C | 7.64 W | 308.1 lm |
| NDP11-30K-24V-C90-C | 10.64 W | 458.2 lm |
| NDP14-30K-24V-C90-C | 13.64 W | 524 lm |
| NDP17-30K-24V-C90-C | 16.64 W | 646 lm |
| NDP23-30K-24V-C90-C | 22.64 W | 874 lm |
- - Power Input : DC 24V
- - Color Rendering : Ra > 95
- - Available Color : 2700K, 3000K, 3500K, 4000K
- - Energy efficiency : 43lm/W - 10W/m - 335.7lm/m
- - Operating Temperature : 0~45
- - Finish : Aluminum
- - Beam Angle : 100
- - Lamp life : 50,000hr / 70%
- - Warranty : 3 year Warranty
- - IP Rate : IP20

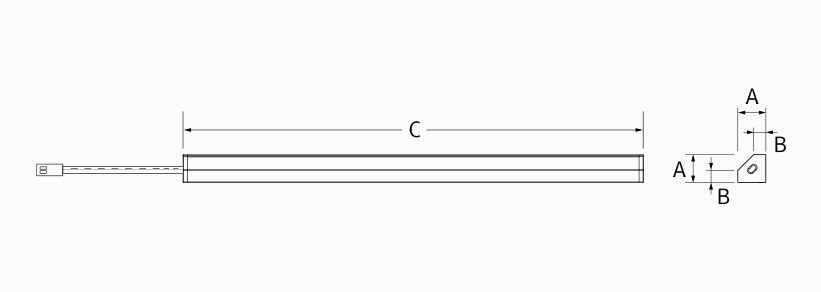

| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) |
|---|---|---|---|---|---|
| NDP5-30K-24V-C90-C | DC 24 | 4.65 | 12 | 5.2 | 465 |
| NDP8-30K-24V-C90-C | 7.64 | 764 | |||
| NDP11-30K-24V-C90-C | 10.64 | 1,064 | |||
| NDP14-30K-24V-C90-C | 13.64 | 1,364 | |||
| NDP17-30K-24V-C90-C | 16.64 | 1,664 | |||
| NDP23-30K-24V-C90-C | 22.64 | 1,964 |

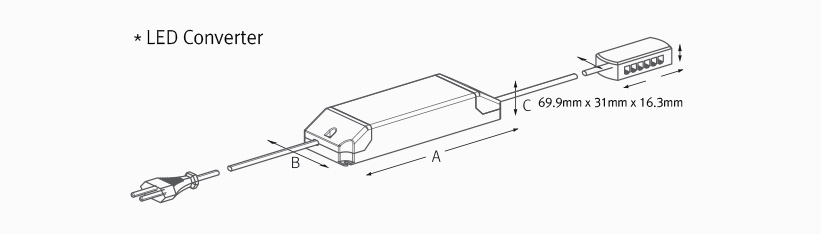

| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
 |
12 Port Hub | 12 Way distributor Included with Cord and Plug drivers. Order separately for 3rd Party Drivers |
||||||
|---|---|---|---|---|---|---|---|---|
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor | ||||||
 |
Door and motion detection sensor (DC) : FLS-M24V | Voltage : DC 24V | ||||||
 |
Human-body detection sensor (DC) : FLS-P24V | Voltage : DC 24V | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 |
Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control |
