DA02V10SE
![DA02V10SE](img/Dimming_System/Other_system_Interface_AC/main_DA02V10SE.jpg)
![적용사례](img/Dimming_System/Other_system_Interface_DC/apply.jpg)
![적용사례](img/Dimming_System/Other_system_Interface_DC/info_191108.jpg)
Channel | Input Signal | Out Power | Output Load | Rated Input |
---|---|---|---|---|
2CH | DC 0-10V/1-10V | DC220-240V, PWM output 2CH | Max 10 pcs of AC dimming products per channel and up to 200W per channel | AC 220-240V, 50/60Hz |
• Dimension
![dimension](img/Dimming_System/Other_system_Interface_AC/dimension_DA02V10SE.jpg)
Model Name | A(mm) | B(mm) | C(mm) |
---|---|---|---|
DA02V10SE | 148 | 33 | 58 |

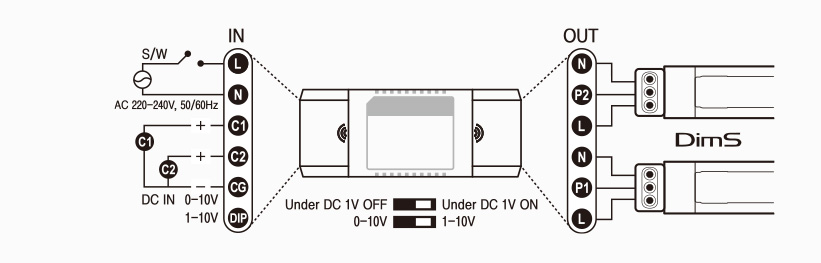

• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_AC/dia_DA02V10SE.jpg)
