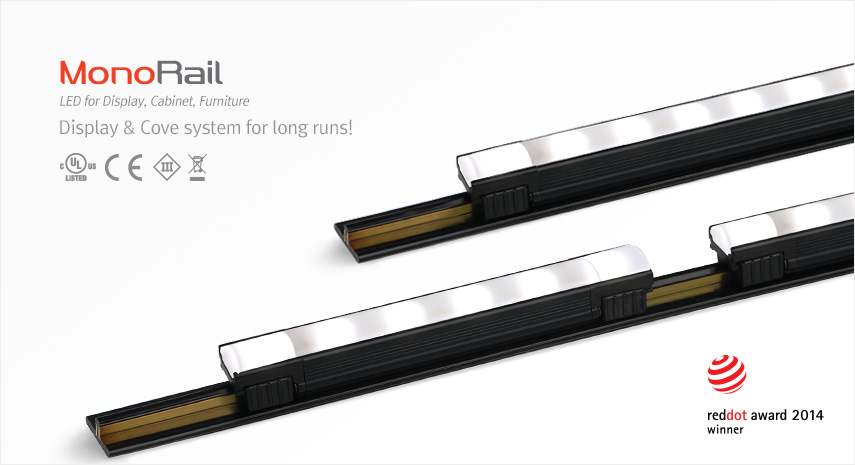

MonoRail
- - Супер яркий светильник на трековой магнитной шине.
- - Питание подается через магнит.
- - Магнит повышенной мощности - гарантированно четкая фиксация.
- - Для использования с постоянным напряжением 24 В.
- - Диммируемый
Различные варианты

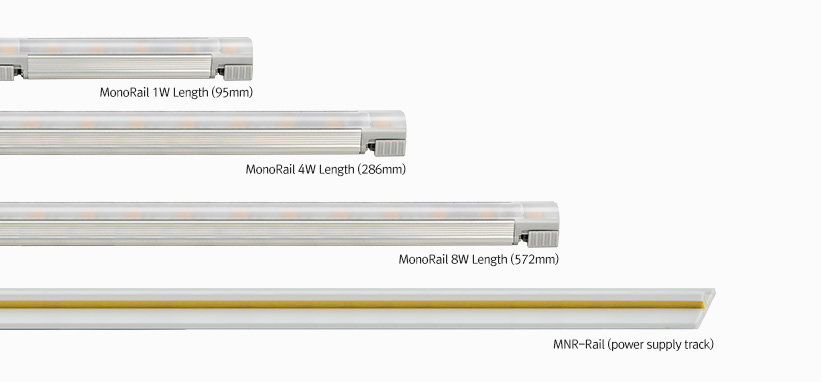

| Модель | Мощность (Вт) | Световой Поток (lm) |
|---|---|---|
| MNR1 40K-24V | 1 | 90 |
| MNR4 40K-24V | 4 | 360 |
| MNR8 40K-24V | 8 | 720 |
- - Питание 24В
- - Энергоэффективность : 90 lm/W
- - Цветопередача : Ra > 85
- - t° цвета : 2,700K/3,000K/3,500K/4,000K/6,000K
- - Рабочая температура : 0~45℃
- - Максимальное соединение 180В
| Модель | Питание (V) | Мощность (Вт) | A (mm) |
A' (mm) |
B (mm) |
B' (mm) |
C (mm) |
C' (mm) |
D (mm) |
E (mm) |
F (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MNR1 40K-24V | DC 24 | 1.3 | 95 | 121 | 15.3 | 30.6 | 12.3 | 14.9 | 15.6 | 14.6 | 17 |
| MNR4 40K-24V | DC 24 | 4 | 286 | 312 | 15.3 | 30.6 | 12.3 | 14.9 | 15.6 | 14.6 | 17 |
| MNR8 40K-24V | DC 24 | 8 | 572 | 598 | 15.3 | 30.6 | 12.3 | 14.9 | 15.6 | 14.6 | 17 |
 |

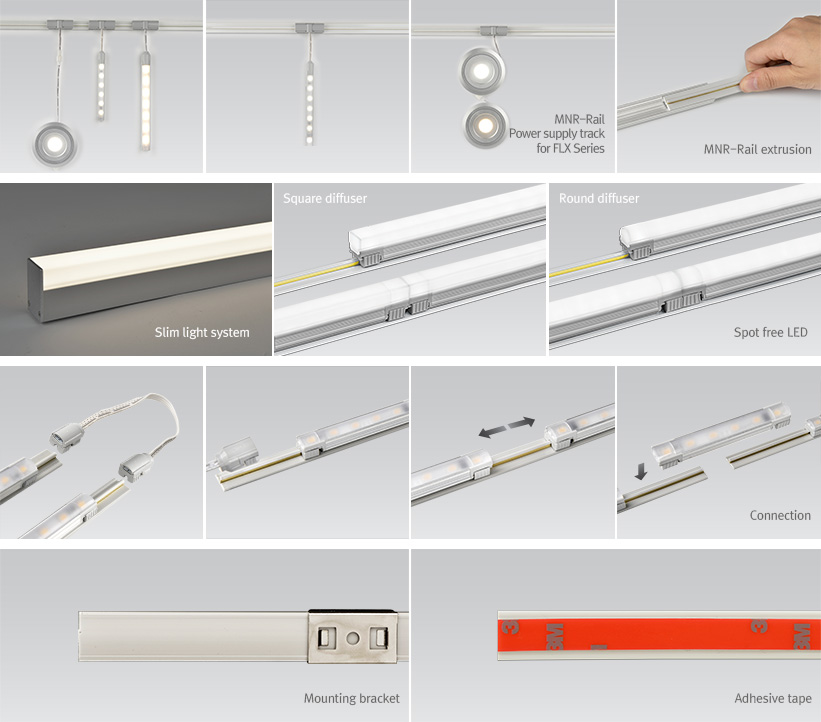

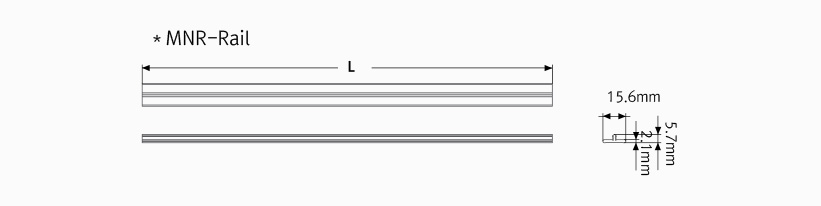

Power supply track : MNR-Rail (20m) | Power supply track in Roll without adhesive Color : White, Gray, Black |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power supply track : MNR-Rail (1.2m) | Power supply track with adhesive tape Color : White, Gray, Black |
||||||||||
 |
Adhesive tape | Adhesive tape for MNR-Rail (16.5 m) | ||||||||||
 |
Power supply cable to the MNR-Rail : MNRPC (2500mm) | 120W in one row (w/ terminal block) 180W in one row (w/o terminal block) |
||||||||||
 |
Connecting cable between MNR-Rail |
|
||||||||||
 |
Connecting cable between MNR-Rail and FLX Stix NDV : MNRPTC-NDV |
|
||||||||||
 |
Connecting cable between MNR-Rail and FLIX Stix HDV&DDV : MNRPTC-HDV |
|
||||||||||
 |
Connecting cable between MNR-Rail and FLX Spot DVS : MNRPTC-DVS |
|
||||||||||
 |
Sidefeed for seamless extension(1W) : MNR1 40K-24V-S | 120W in one row | ||||||||||
 |

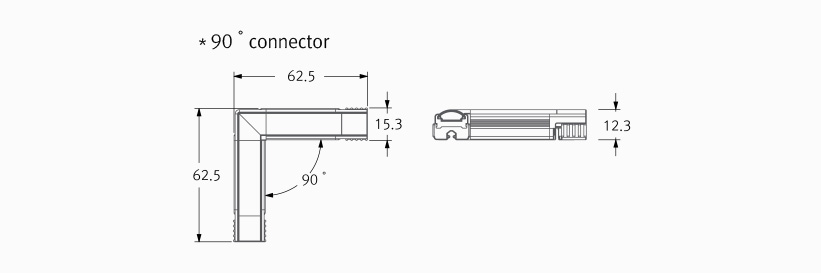

90˚connector : MNR1 40K-24V-90 | MonoRail90˚connector (1W) 120W in one row |
||||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor | ||||||||||
 |

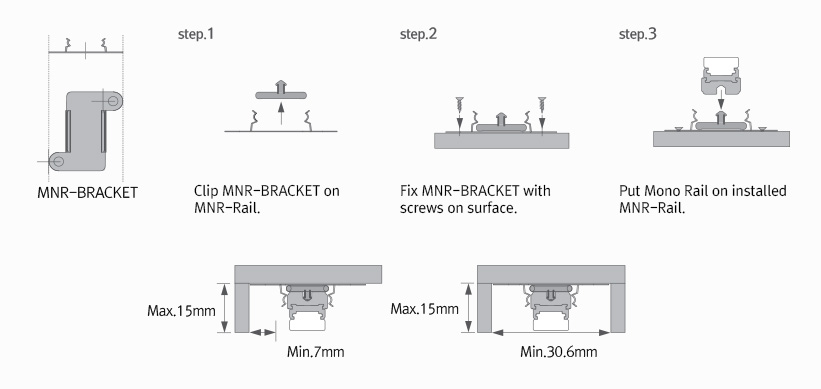

MonoRail bracket : MNR-BRACKET (standard) | |||||||||||
 |
MonoRail bracket : MNR-BRACKET1 (optional) | |||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||||
 |

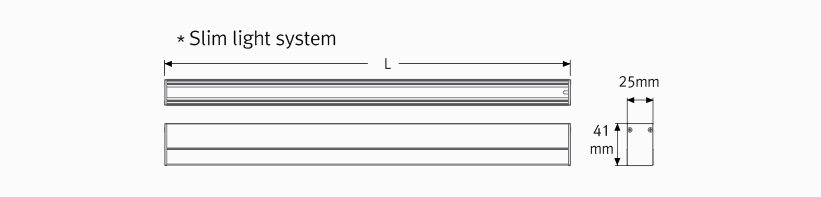

Slim light system (1.2M) : SLS-EXT | |||||||||||
 |
MNR-Rail extrusion line (1.2m) Without MNR-Rail |
|
||||||||||
 |
MNR-Rail extrusion corner (1.2m) Without MNR-Rail |
|
||||||||||
 |
MNR-Rail extrusion pole (300mm) With MNR-Rail |
|
||||||||||
 |
End cap : MNR-CAP | |||||||||||
 |
MNR-Rail protection cover : MNR-Rail cover |
