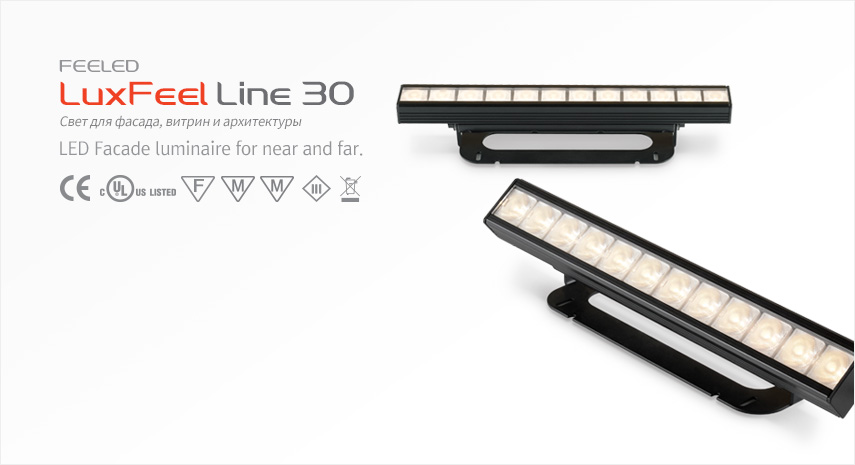

LuxFeel Interior Line

LuxFeel_Line_30

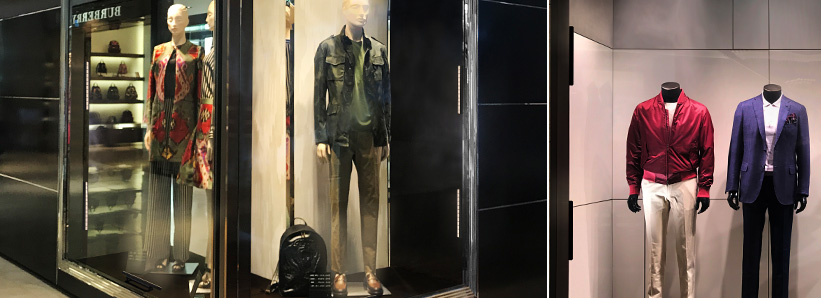

    적용사례
  • - Ideal for exhibition or commercial place

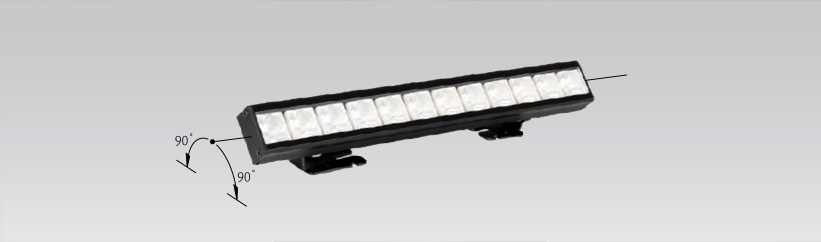

  • - Adjustable product: beam angle changeable
  • - Light for facades, windows display and architecture
  • - High color rendering
  • - Various length available

Световой поток

다양한특징 다양한특징

Notice

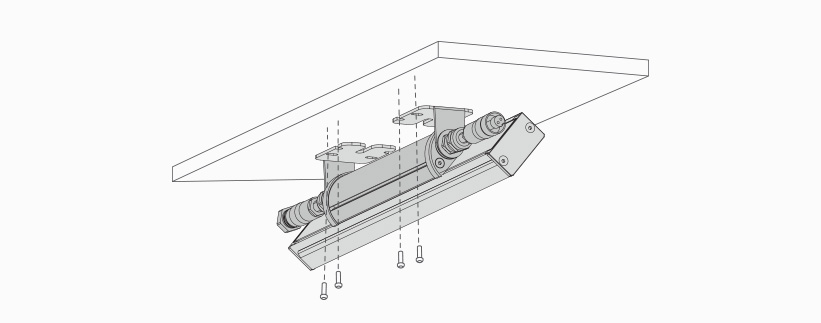

설치방법
Max. connection
Model Name Energy Consumption Lumens
LIL30 40K-24V-C90 11.2 W 900 lm
LIL60 40K-24V-C90 22.5 W 1,800 lm
LIL90 40K-24V-C90 33.7 W 2,700 lm
LIL120 40K-24V-C90 45 W 3,600 lm
  • - Voltage Input : DC 24V
  • - Energy Efficiency : 80 lm/W
  • - Color Rendering : Ra > 90
  • - Available Color : 2,700K/3,000K/3,500K/4,000K/5,000K
  • - Beam Angle : 32˚, 45˚ Oval 13˚x 40˚
  • - Material : AL
  • - Housing Color : BK, SV, WT

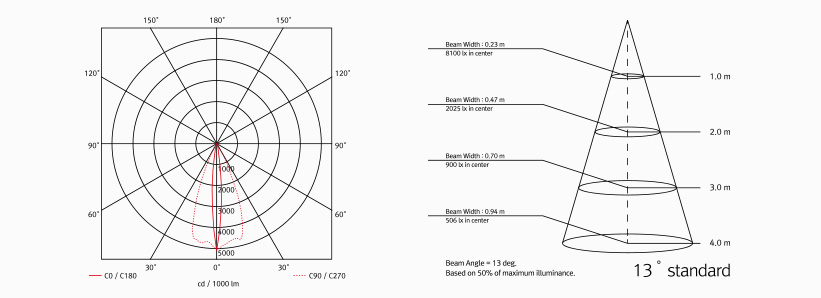

배광곡선 및 직하조도
규격
Max. connection
Mode Name L (Length/mm)
LIL12 40K-24V 300.5
LIL24 40K-24V 600.5
LIL36 40K-24V 900.5
LIL48 40K-24V 1,200.5

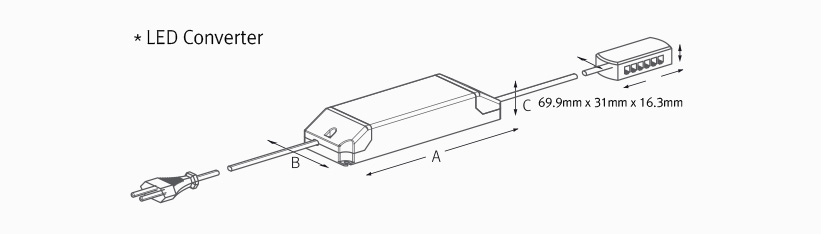

규격
Max. connection
Mode Name A(mm) B(mm) C(mm)
FLC30-24V/KR 150 41 31
FLC75-24V/KR 180 60 32
Aceessories
Distributor Open Power cable : LILOPC (2,500mm) * Available Color : Black, White
고정클립 LED Driver with 12way distributor with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T FLC75-24V-P/T
Capacity 30W 24V 75W 24V
End-CAP LED Driver : FLC200-24V/T (200W, DC24V)
Max. connection
LILPTC LILPTC1 LILPTC2 LILPTC4 LILPTC6
150mm (6inch) 300mm (1feet) 600mm (2feet) 1,200mm (4feet) 1,800mm (6feet)

Ищете дополнительную информацию о нас и наших продуктах?
Ниже доступны ссылки для загрузки / просмотра дополнительной брошюры и технической фотометрической информации.

 LuxFeel Interior Line  IES data
